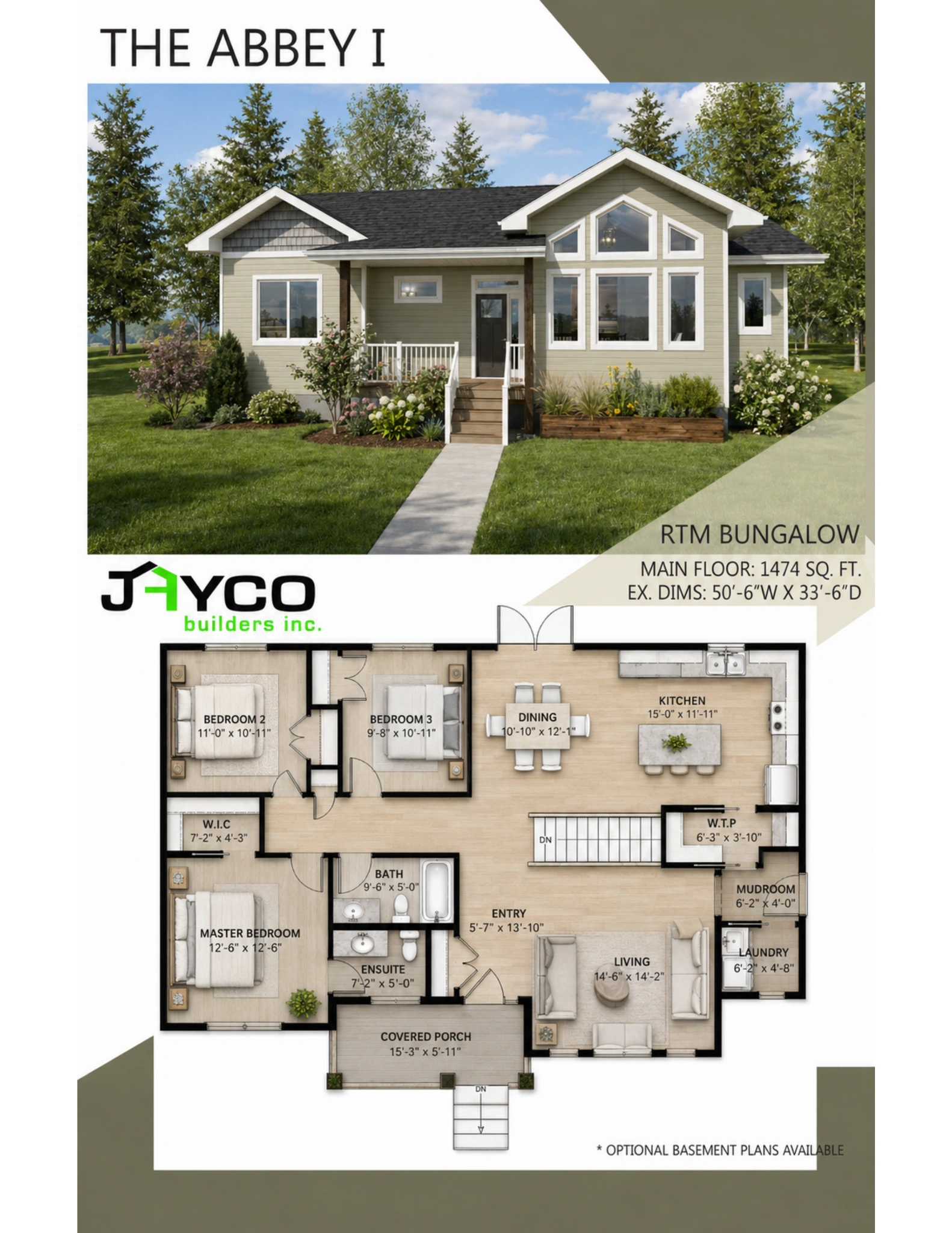

The Abbey I
1,474 sq. ft. main floorExterior: 50'-6" W × 33'-6" D3 bedrooms • 2 bathrooms
Floorplan Gallery
Filter by build method, home style, size, bedrooms or bathrooms.
Use the filters to compare floorplans by build method, home style, living area, bedrooms, bathrooms or garage configuration. Every plan can be reviewed with our in-house design team and adapted through the design-build process to suit the property, project scope and way you want to live.
48 floorplans shownSelect a plan to review the details and open the full-size PDF.

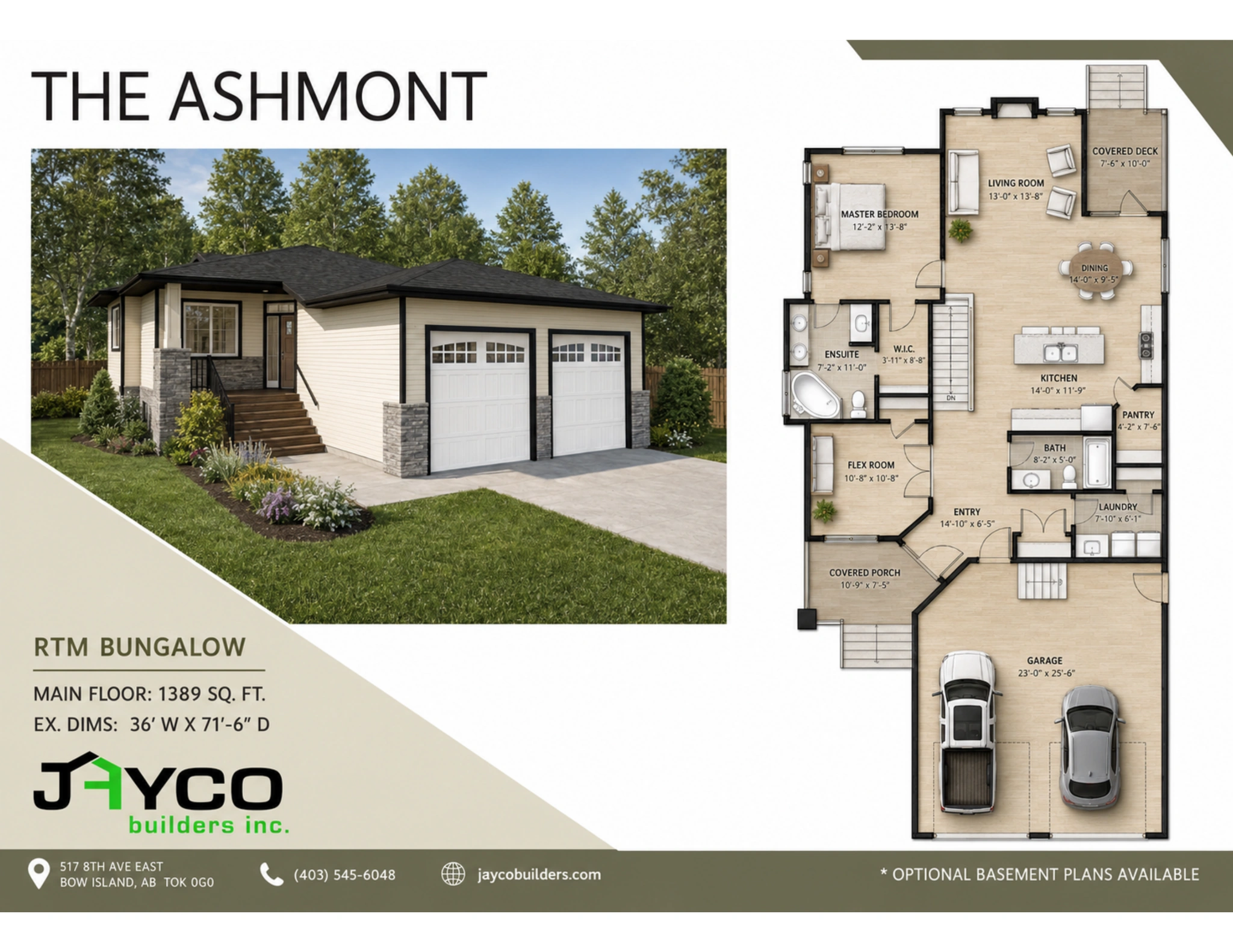

The Ashmont
1,389 sq. ft. main floorExterior: 36' W × 71'-6" D1 bedroom + flex room • 2 bathrooms

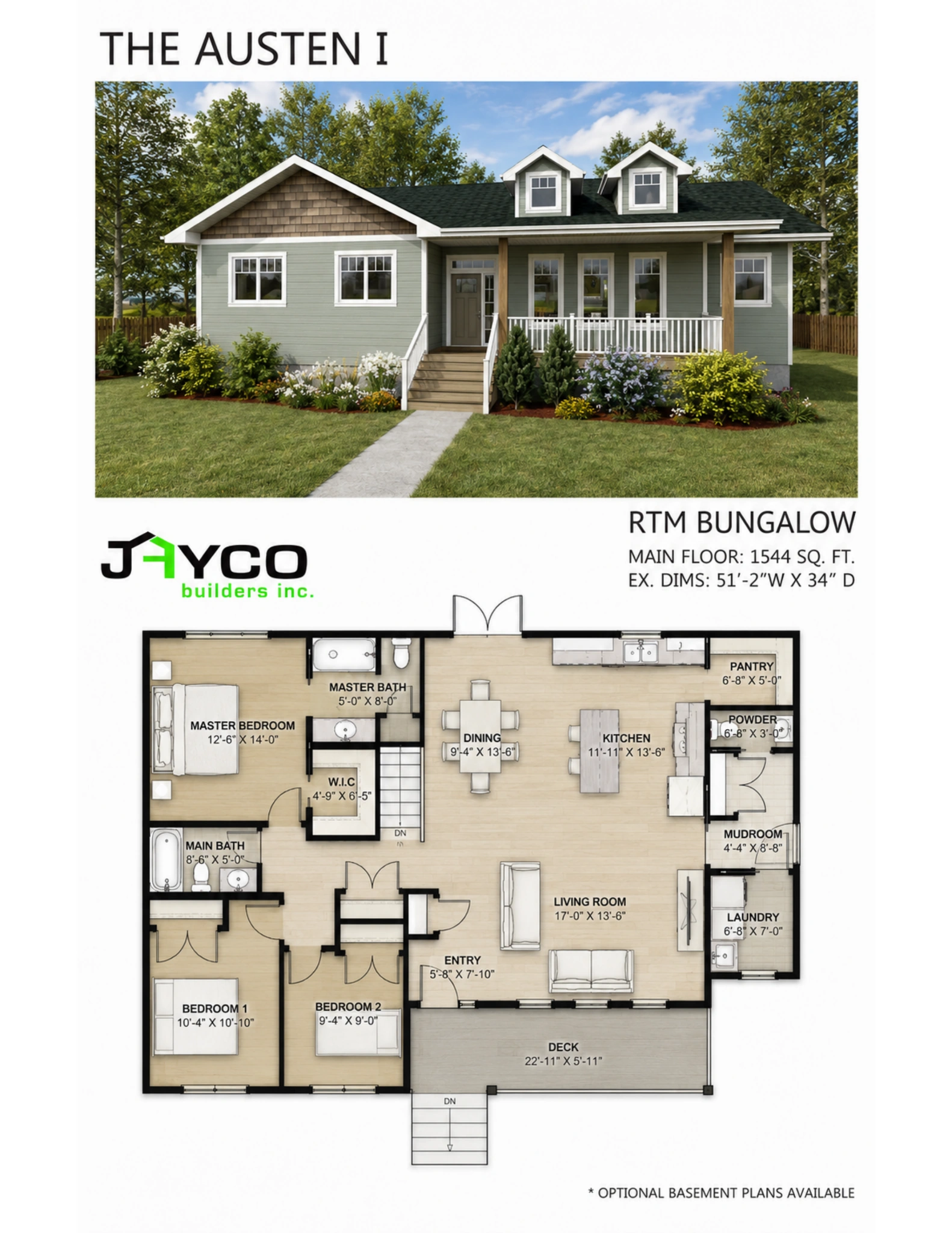

The Austen I
1,544 sq. ft. main floorExterior: 51'-2" W × 34' D3 bedrooms • 2.5 bathrooms

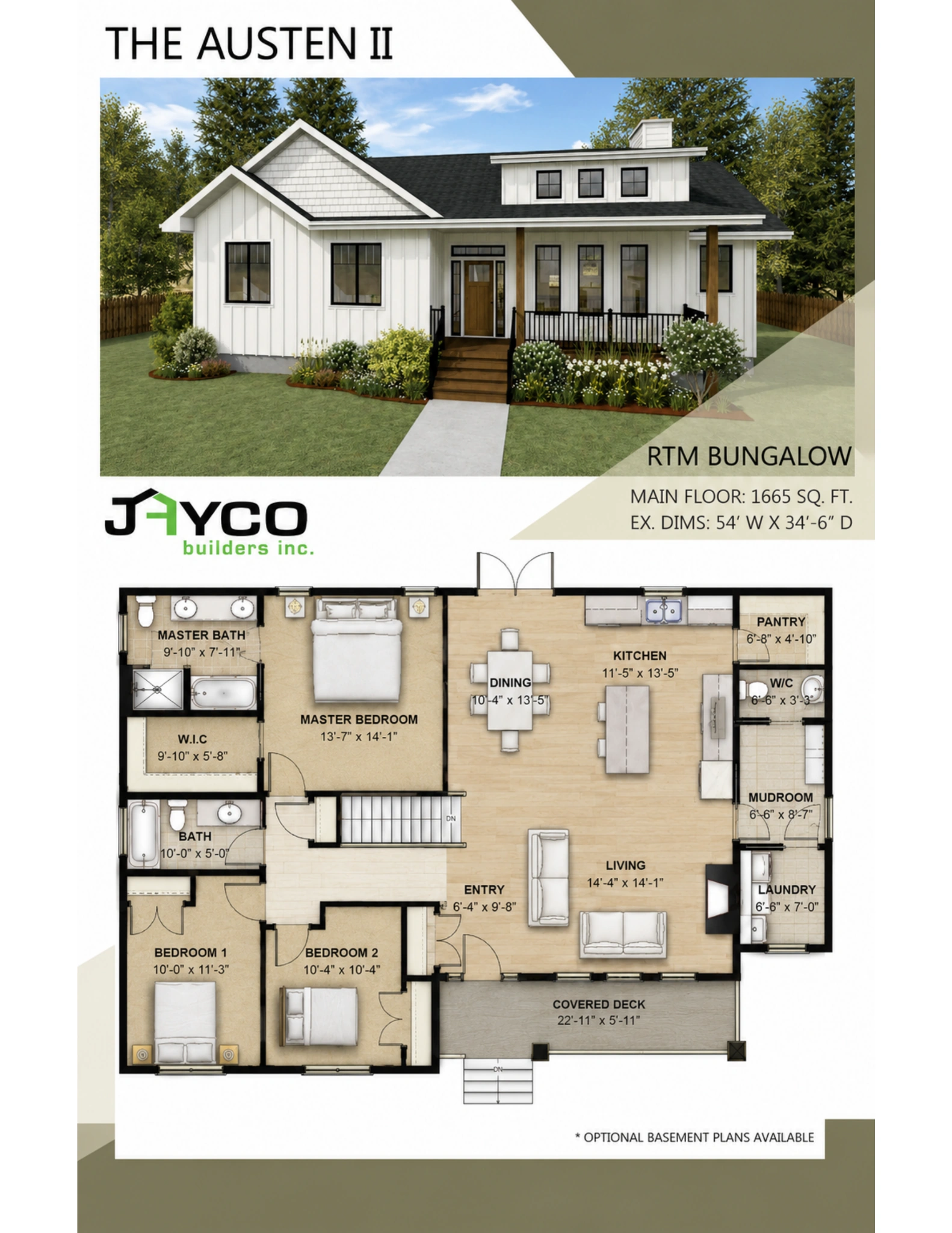

The Austen II
1,665 sq. ft. main floorExterior: 54' W × 34'-6" D3 bedrooms • 2.5 bathrooms

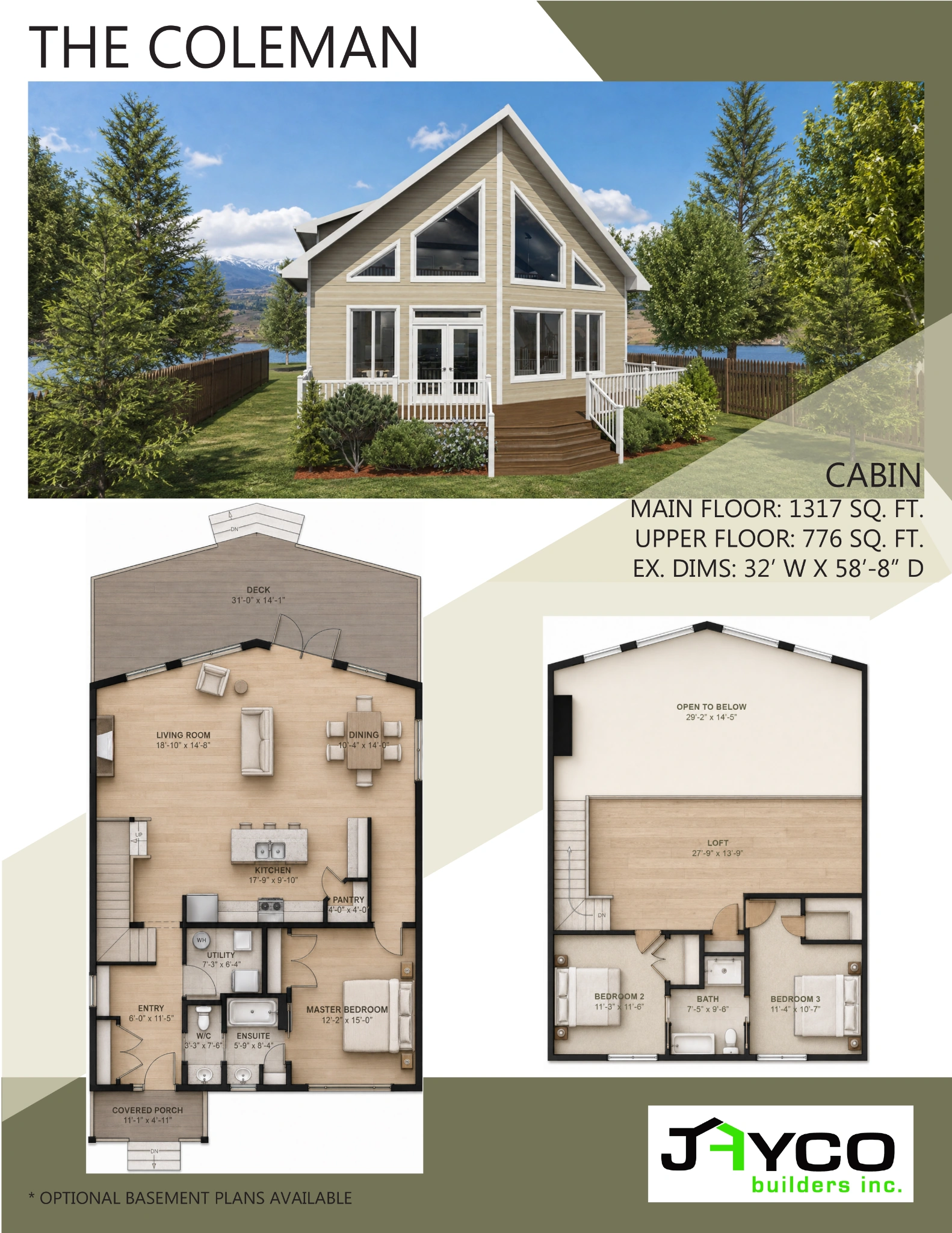

The Coleman
1,317 sq. ft. main + 776 sq. ft. upperExterior: 32' W × 58'-8" D3 bedrooms • 2.5 bathrooms

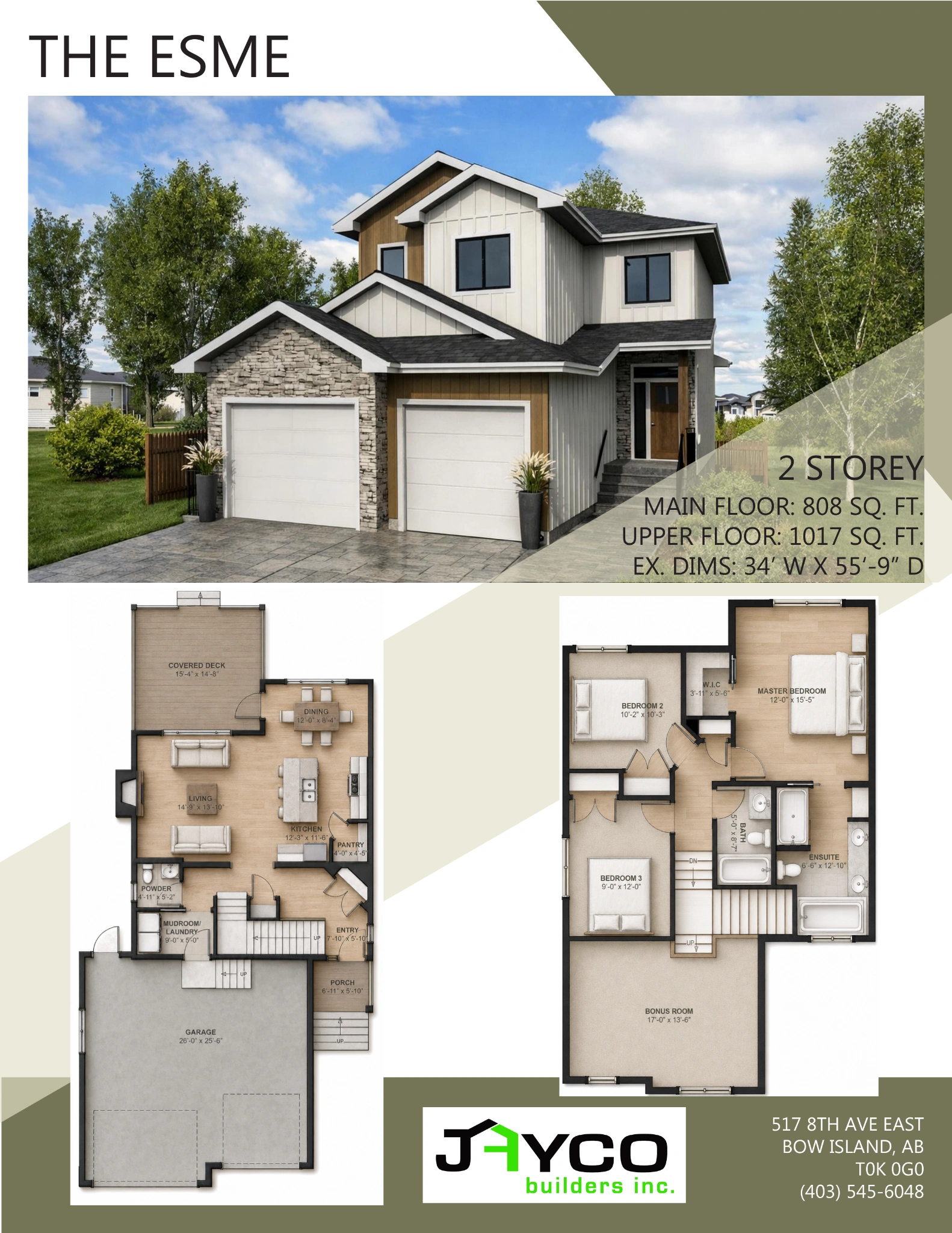

The Esme
808 sq. ft. main + 1,017 sq. ft. upperExterior: 34' W × 55'-9" D3 bedrooms • 2.5 bathrooms

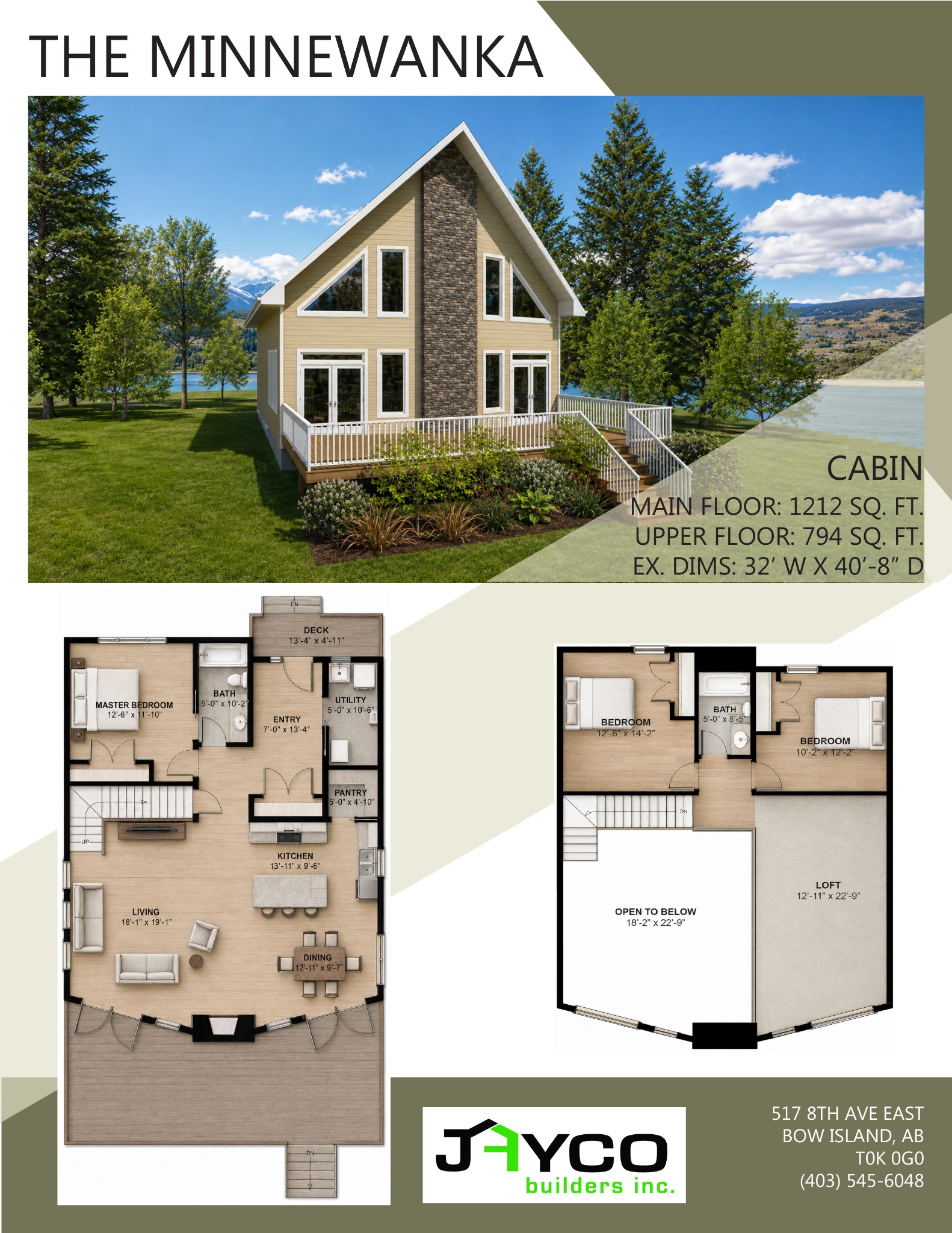

The Minnewanka
1,212 sq. ft. main + 794 sq. ft. upperExterior: 32' W × 40'-8" D3 bedrooms • 2 bathrooms

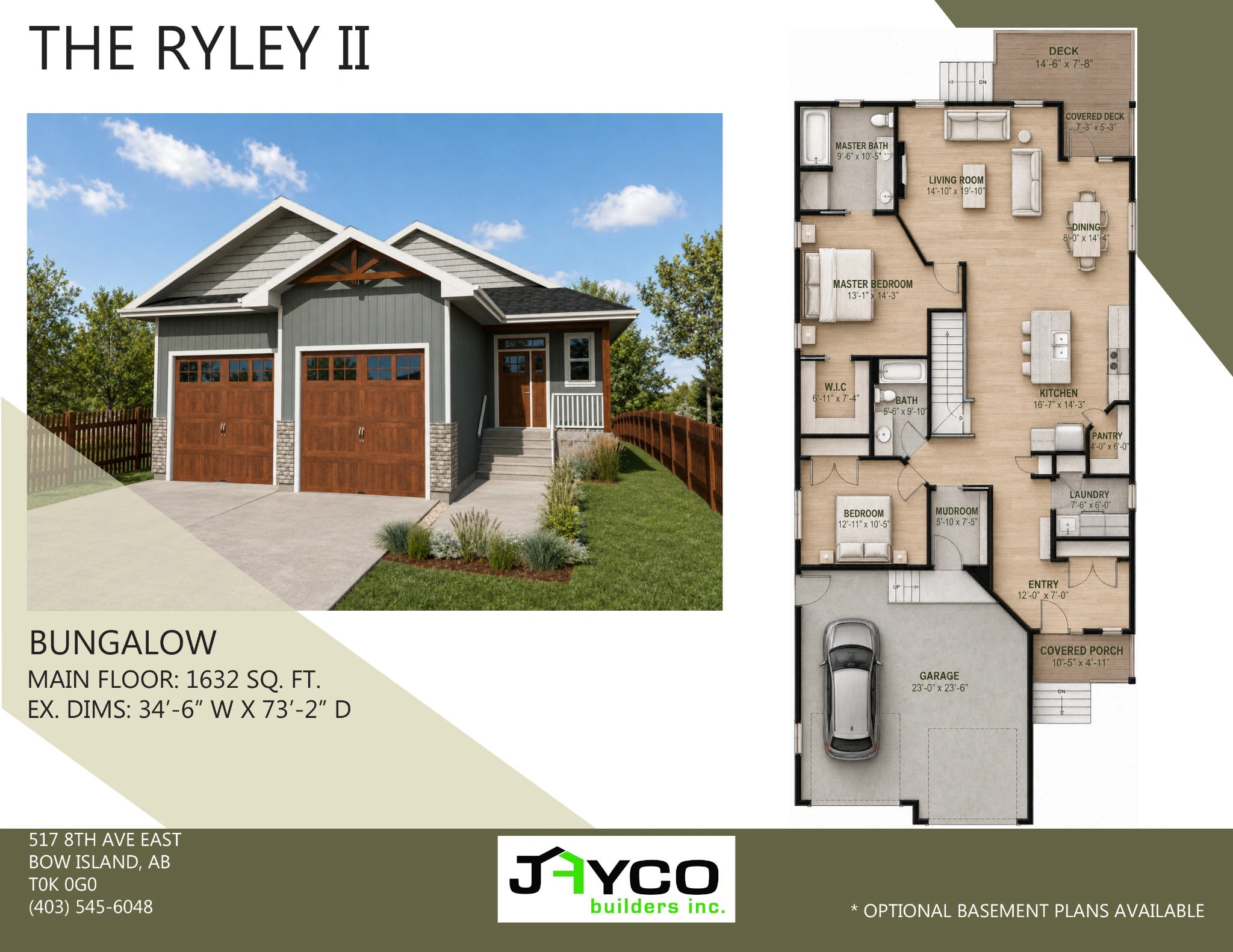

The Ryley II
1,632 sq. ft. main floorExterior: 34'-6" W × 73'-2" D2 bedrooms • 2 bathrooms

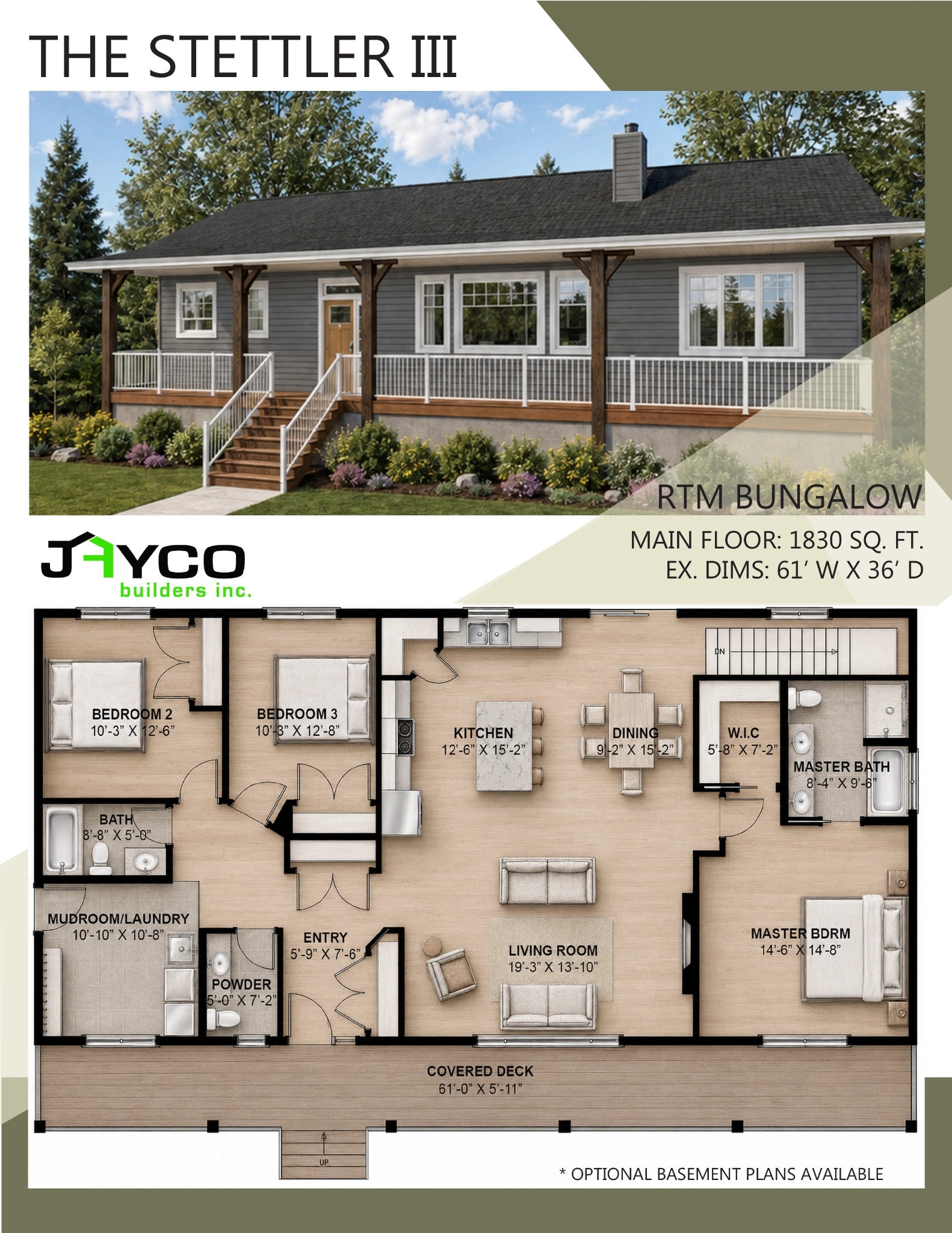

The Stettler III
1,830 sq. ft. main floorExterior: 61' W × 36' D3 bedrooms • 2.5 bathrooms

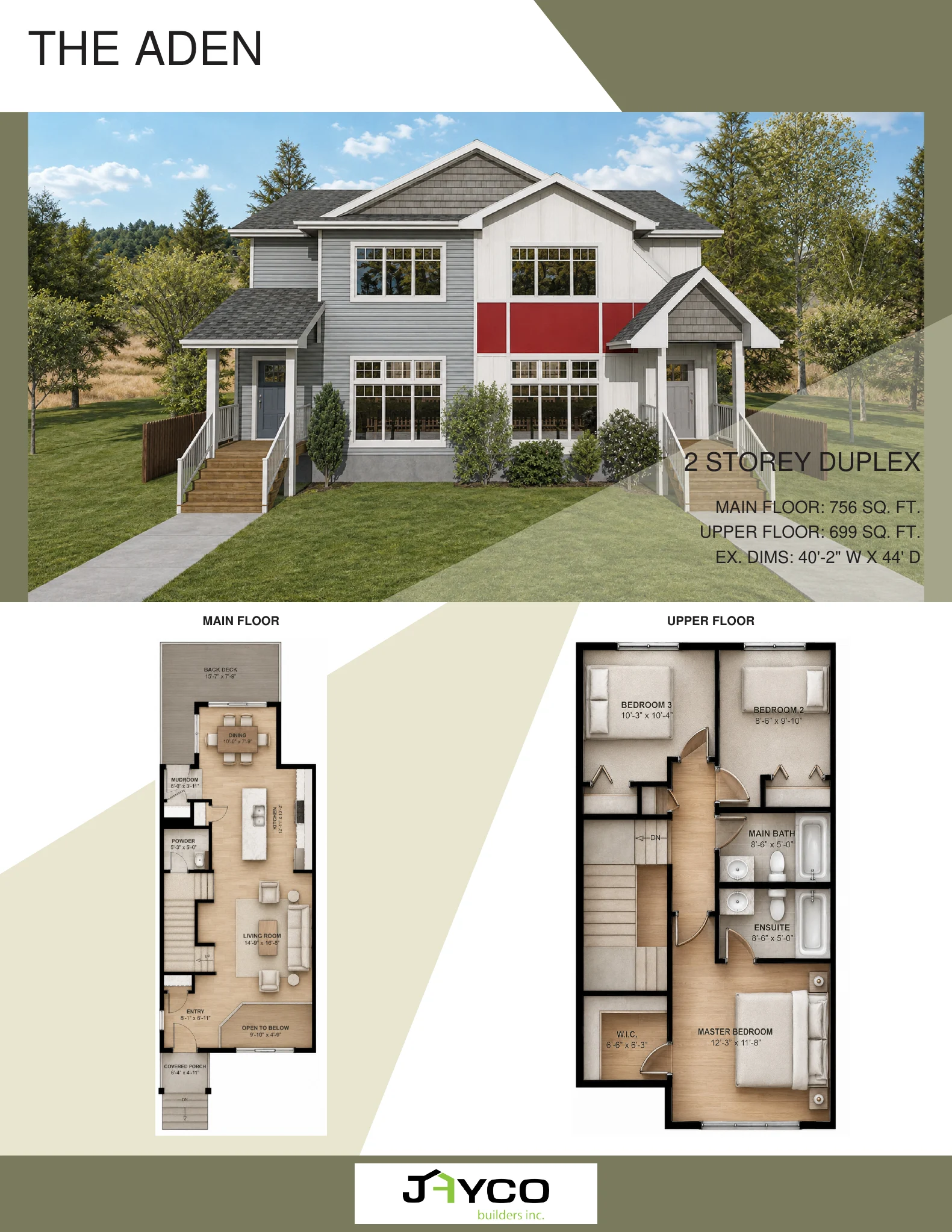

The Aden
1,455 sq. ft. per unit (756 main + 699 upper)Exterior: 40'-2" W × 44' D3 bedrooms • 2.5 bathrooms per unit

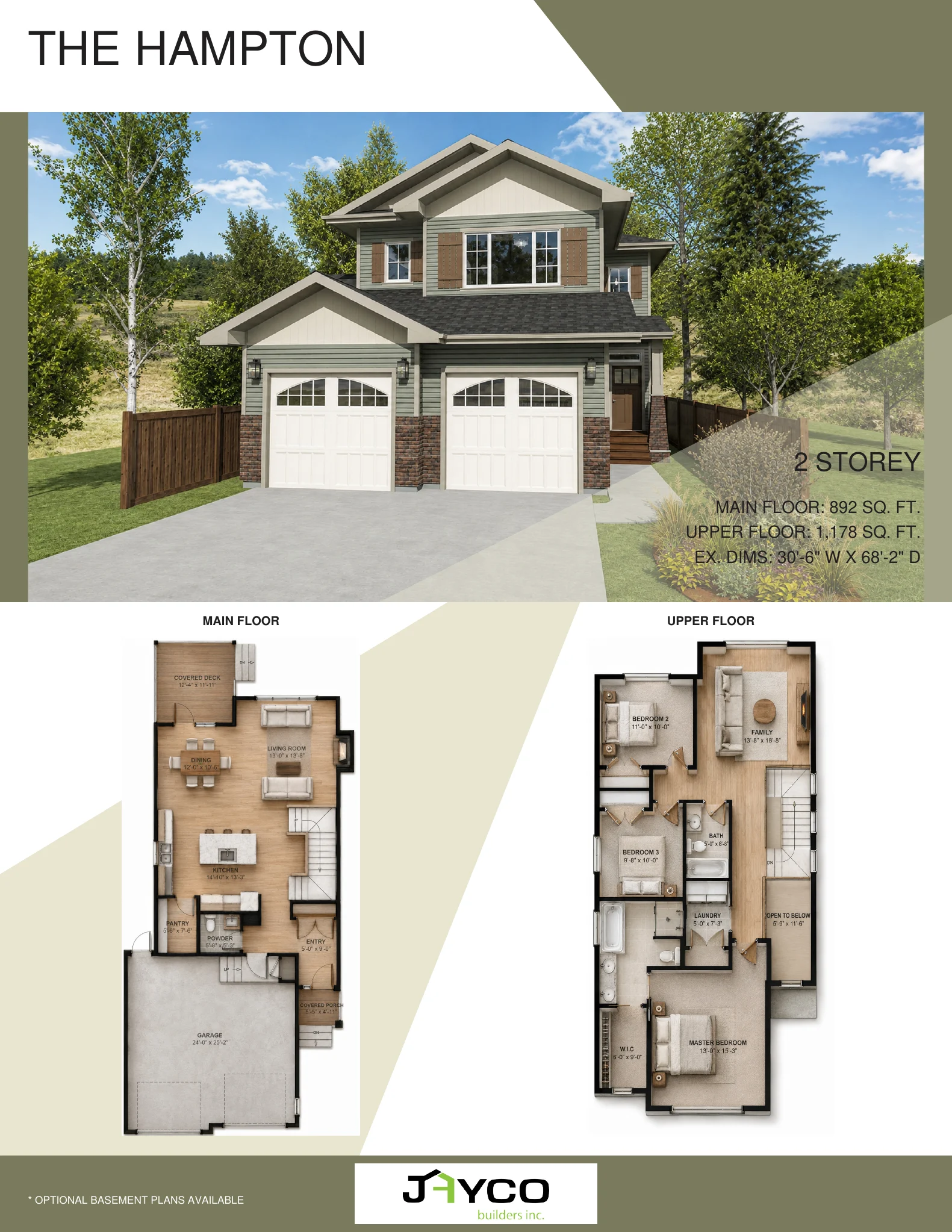

The Hampton
2,070 sq. ft. total (892 main + 1,178 upper)Exterior: 30'-6" W × 68'-2" D3 bedrooms • 2.5 bathrooms

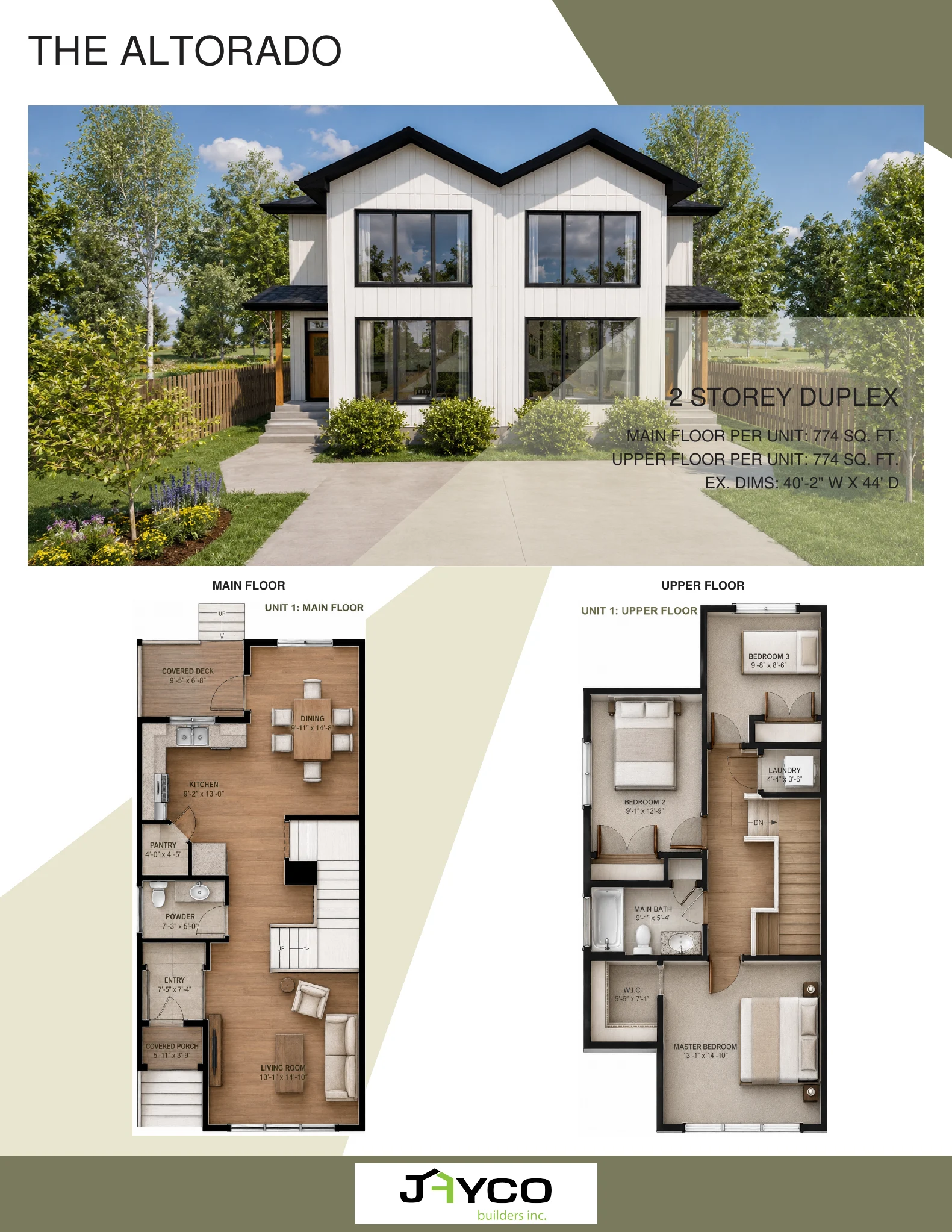

The Altorado
1,548 sq. ft. per unit (774 main + 774 upper)Exterior: 40'-2" W × 44' D3 bedrooms • 1.5 bathrooms per unit

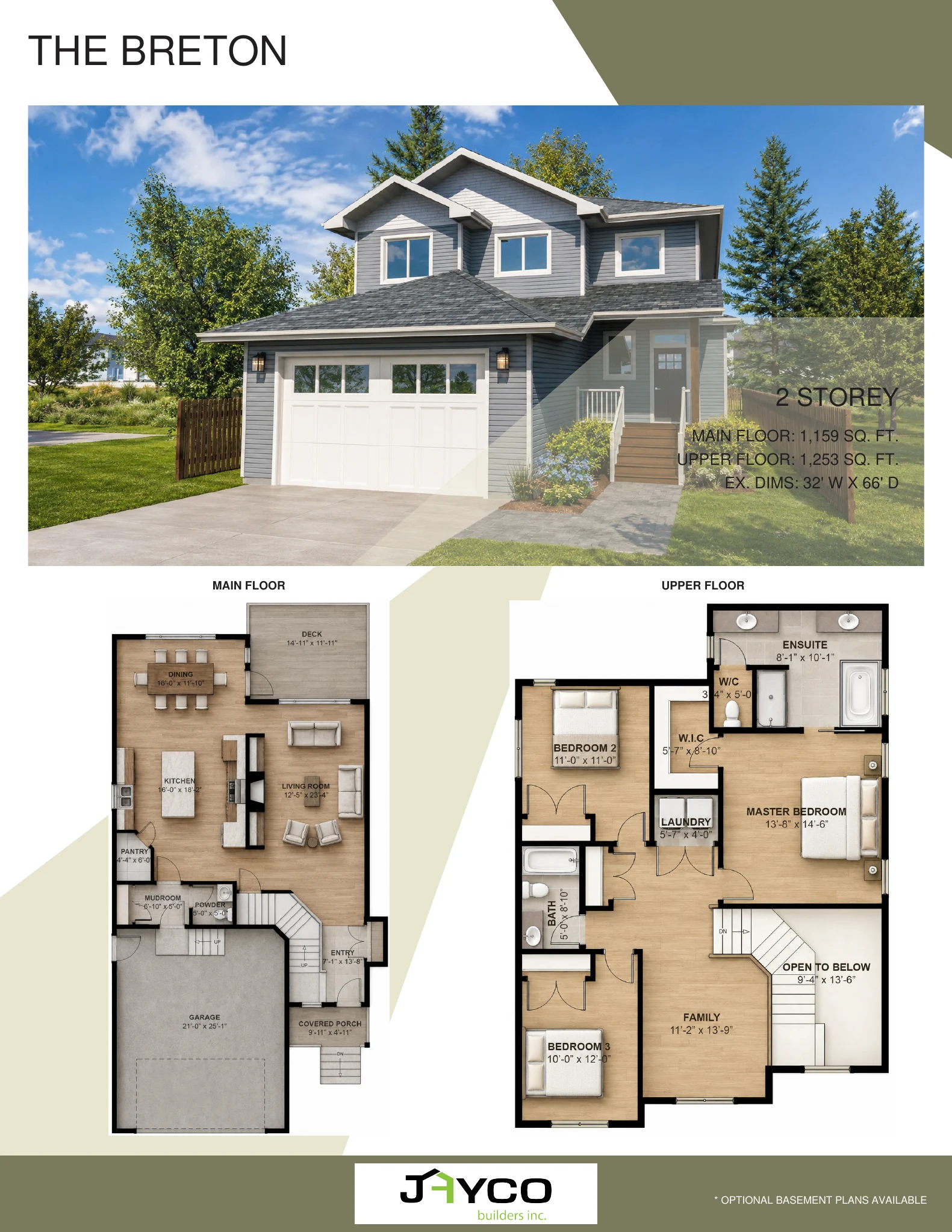

The Breton
2,412 sq. ft. total (1,159 main + 1,253 upper)Exterior: 32' W × 66' D3 bedrooms • 2.5 bathrooms

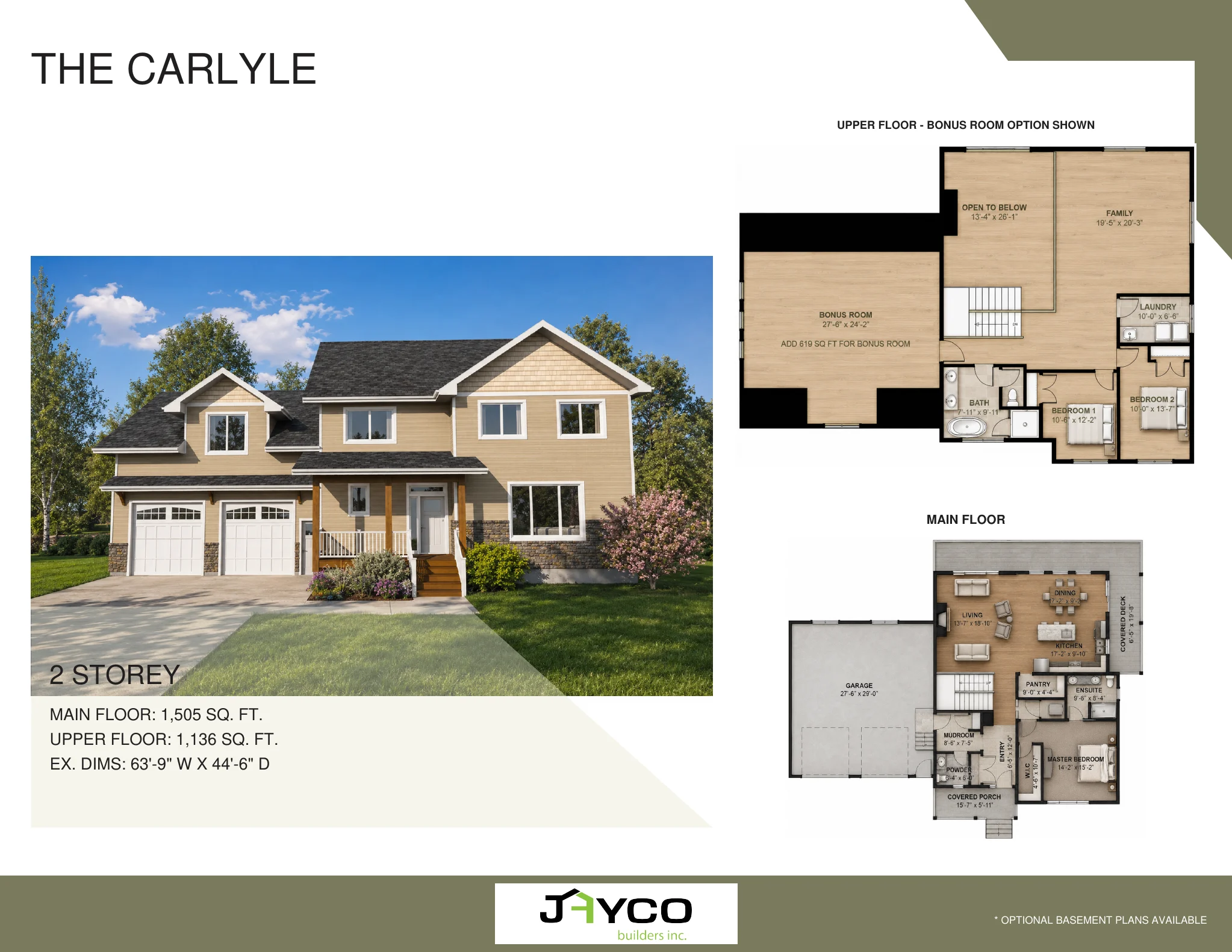

The Carlyle
2,641 sq. ft. total + optional 619 sq. ft. bonus roomExterior: 63'-9" W × 44'-6" D3 bedrooms • 2.5 bathrooms

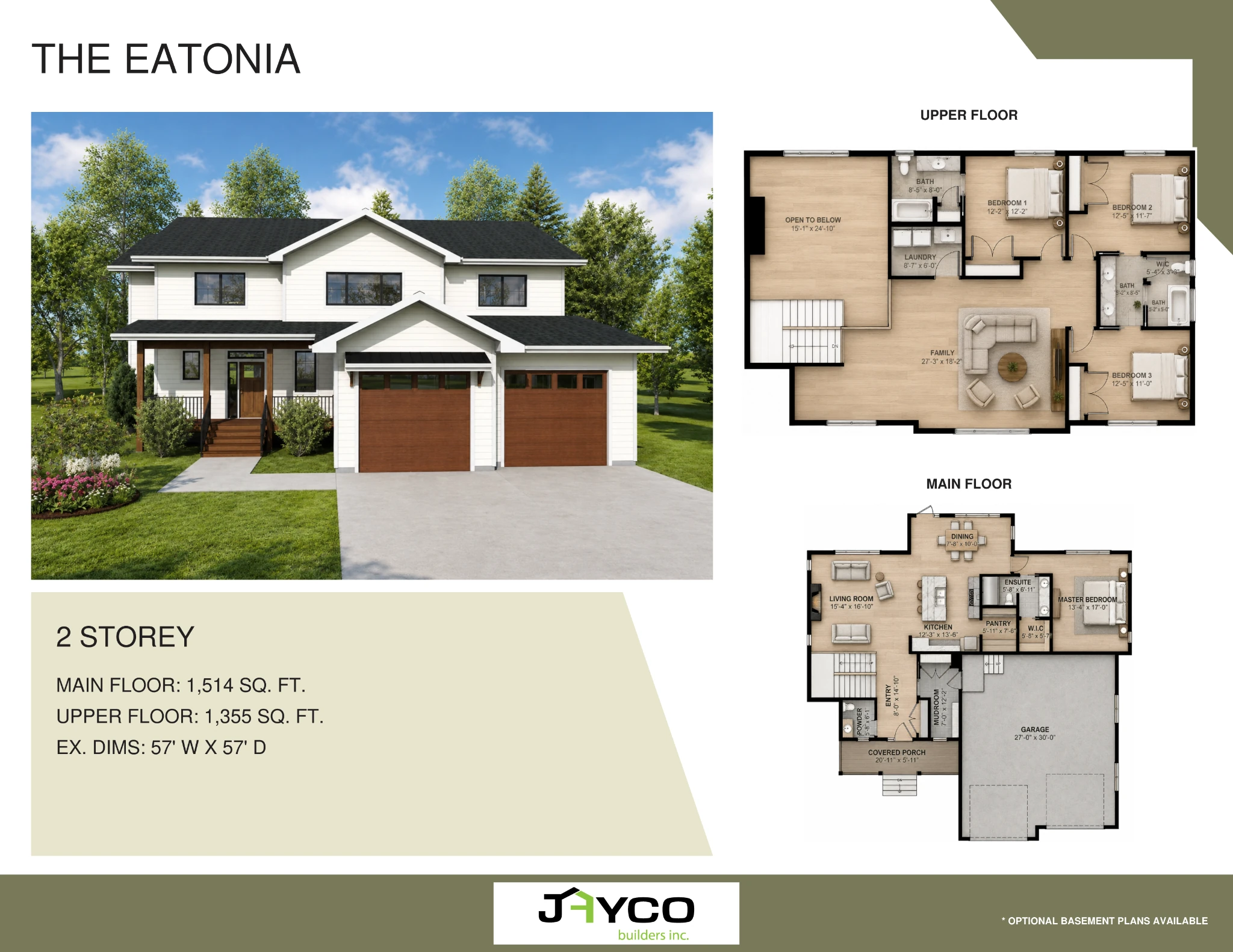

The Eatonia
2,869 sq. ft. total (1,514 main + 1,355 upper)Exterior: 57' W × 57' D4 bedrooms • 3.5 bathrooms

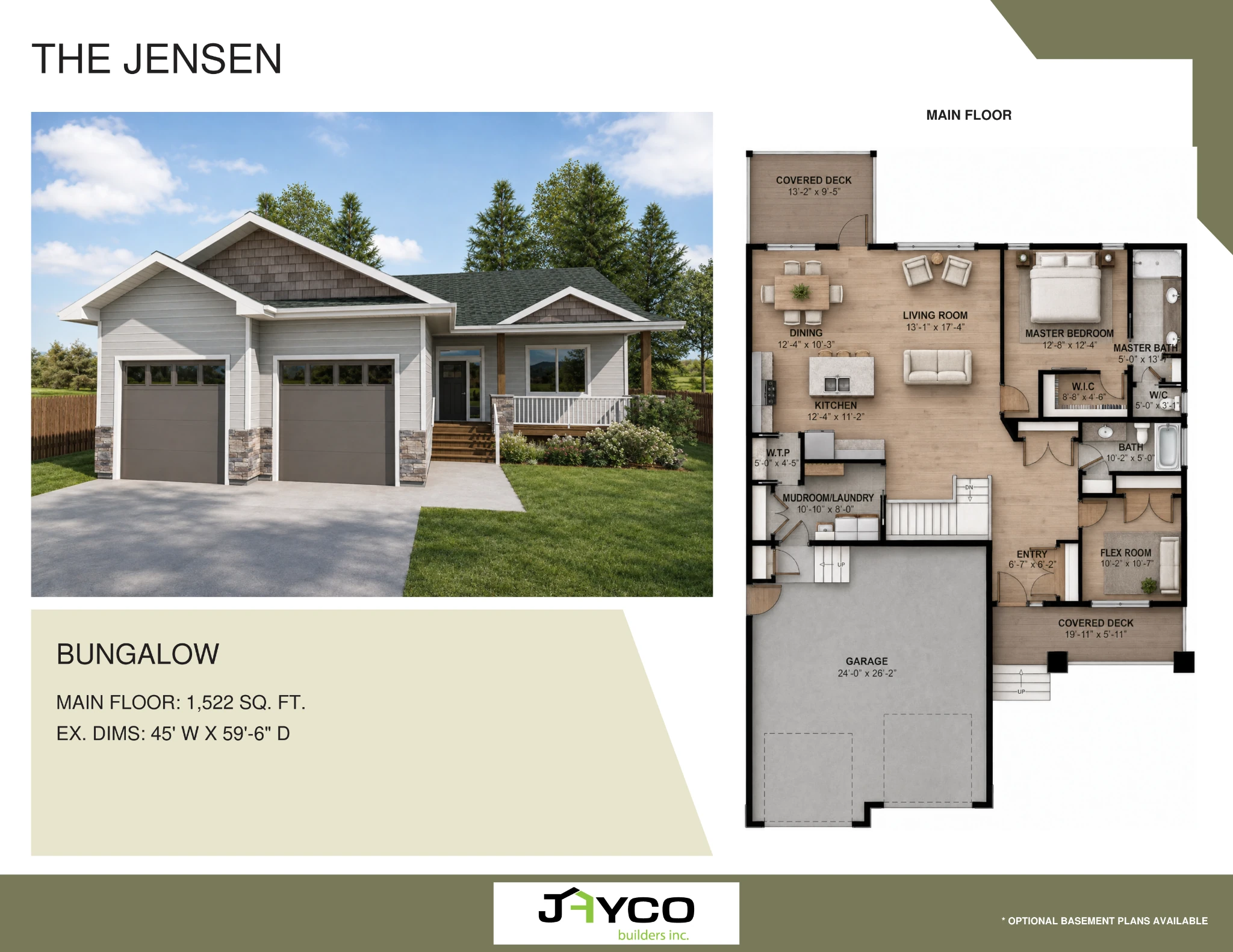

The Jensen
1,522 sq. ft. main floorExterior: 45' W × 59'-6" D1 bedroom + flex room • 2 bathrooms

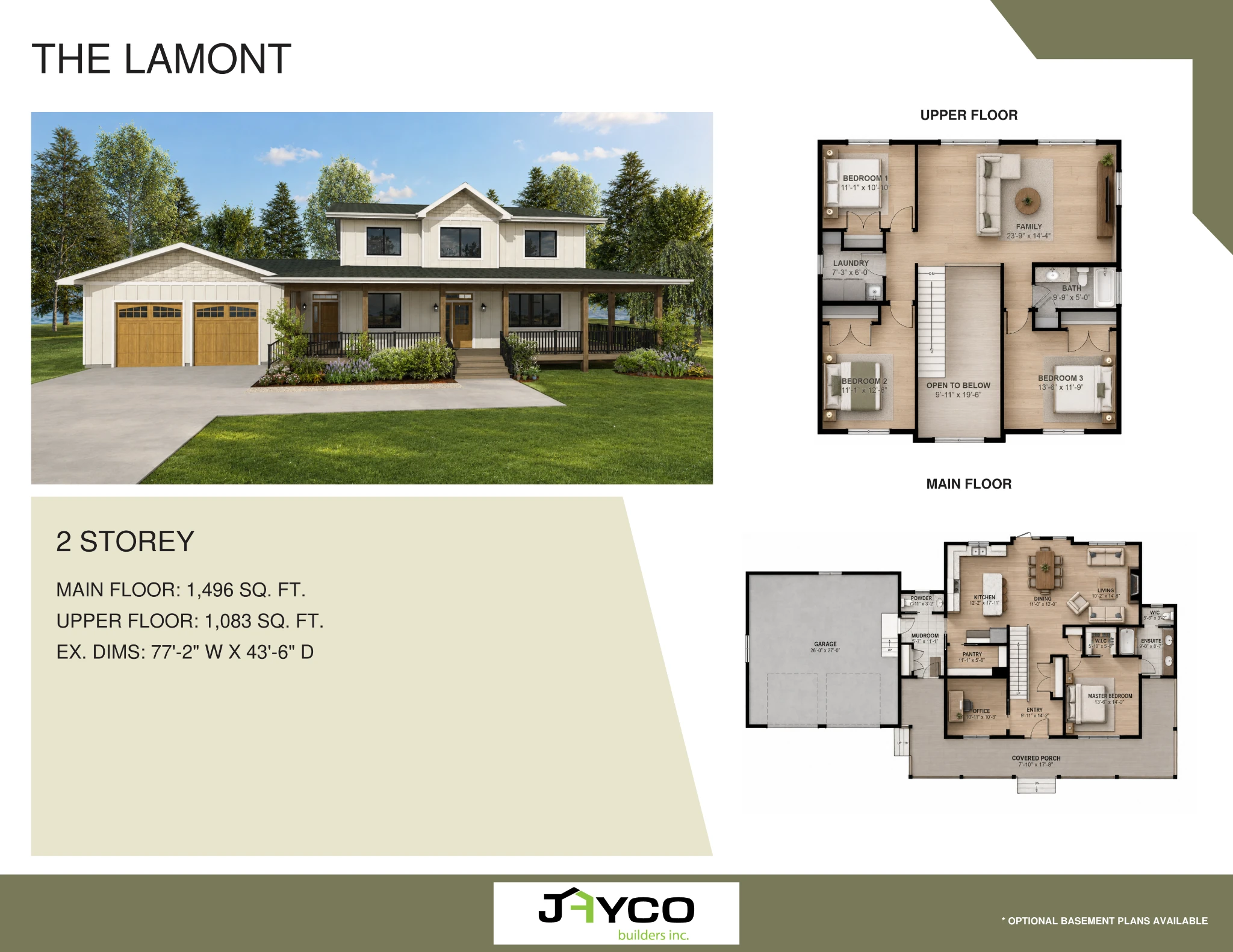

The Lamont
2,579 sq. ft. total (1,496 main + 1,083 upper)Exterior: 77'-2" W × 43'-6" D4 bedrooms • 2.5 bathrooms

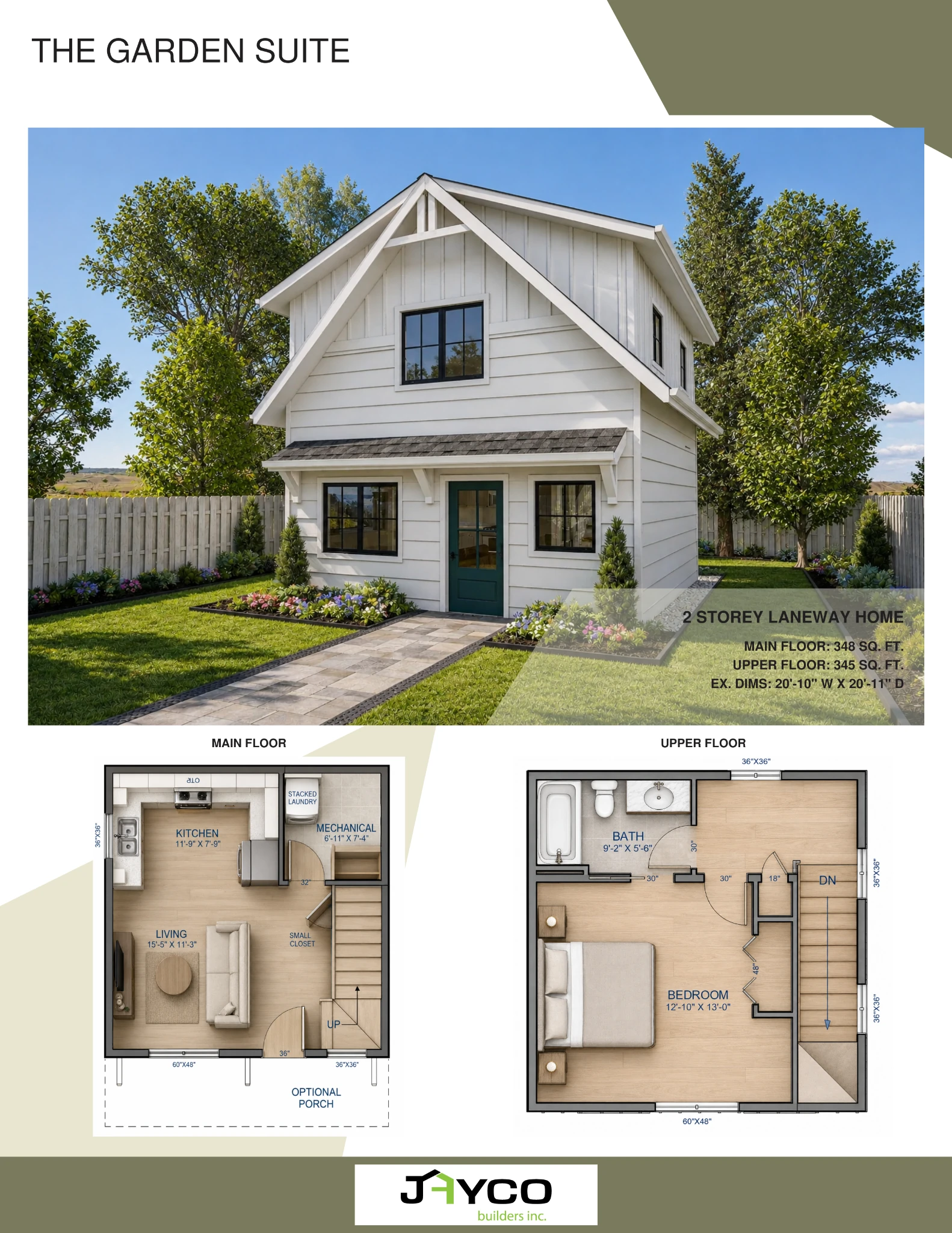

The Garden Suite
693 sq. ft. total (348 main + 345 upper)Exterior: 20'-10" W × 20'-11" D1 bedroom • 1 bathroom

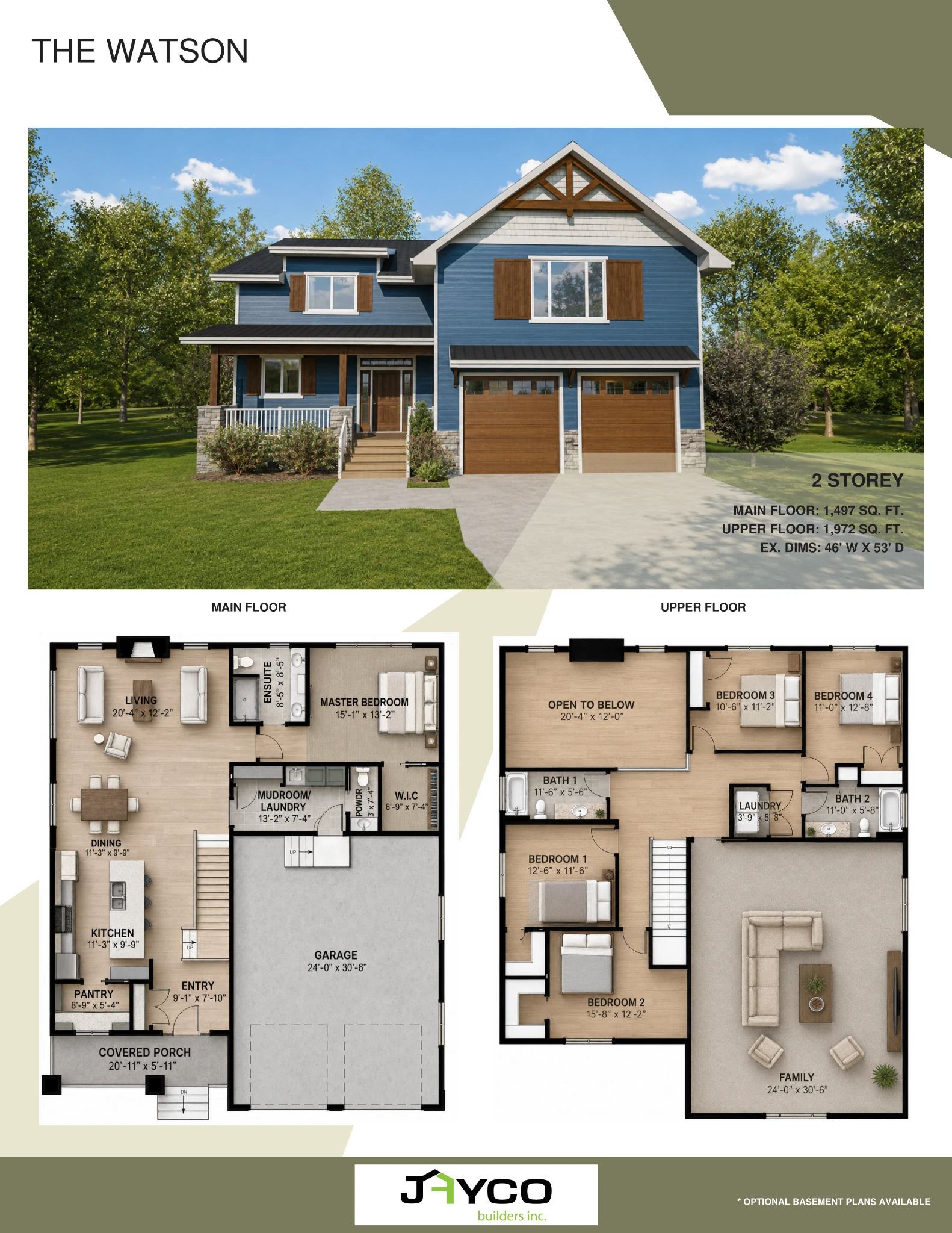

The Watson
3,469 sq. ft. total (1,497 main + 1,972 upper)Exterior: 46' W × 53' D5 bedrooms • 3.5 bathrooms

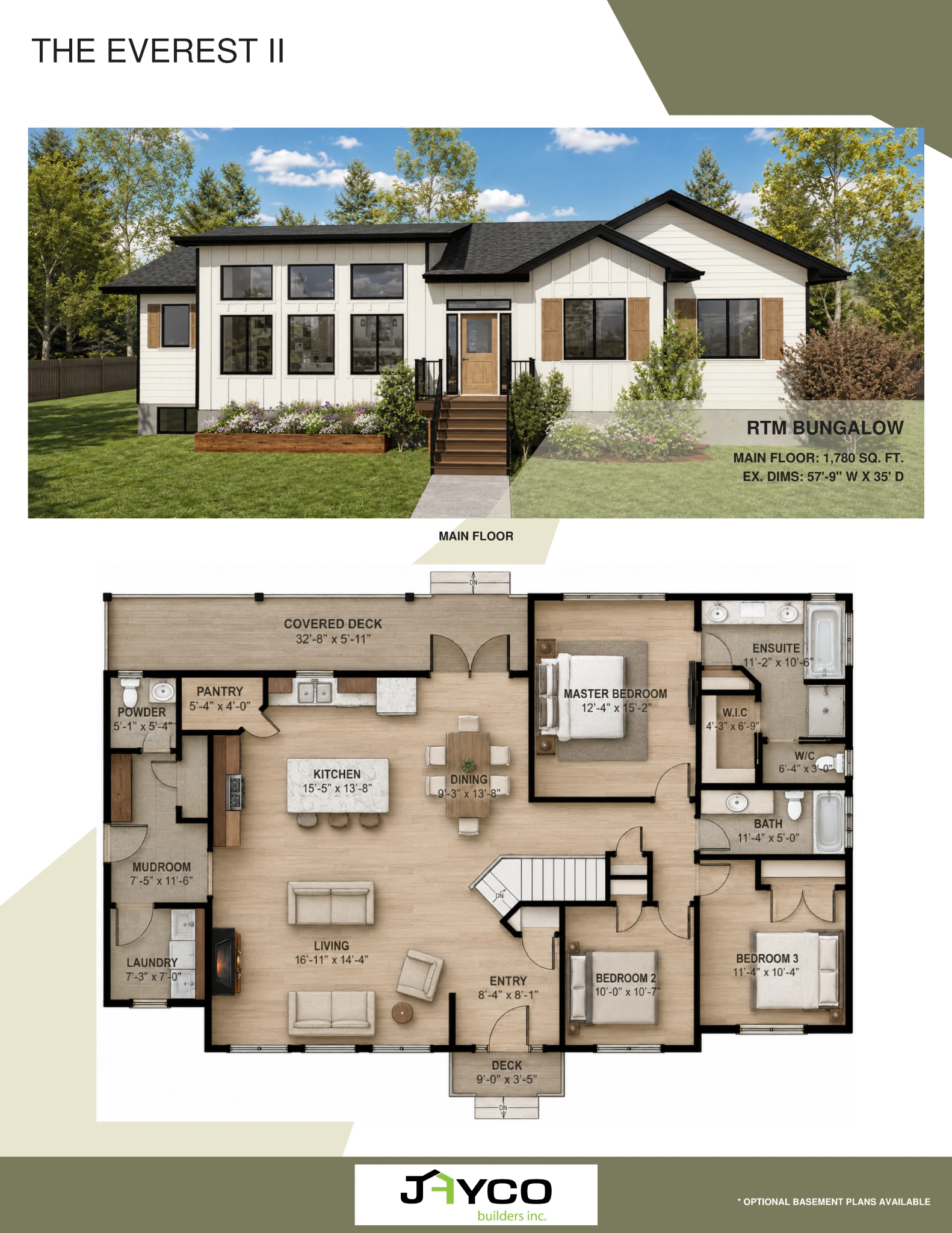

The Everest II
1,780 sq. ft. main floorExterior: 57'-9" W × 35' D3 bedrooms • 2.5 bathrooms

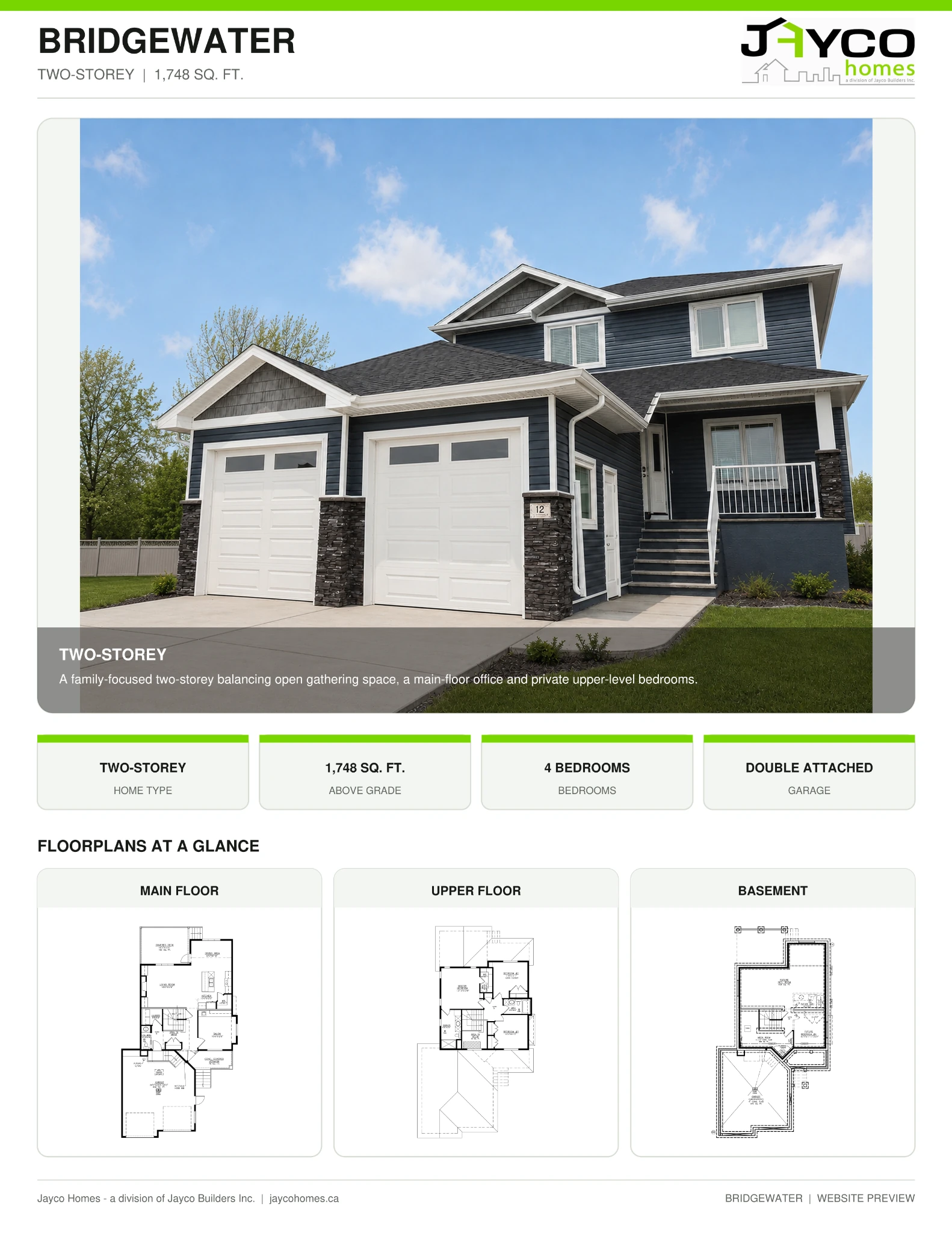

Bridgewater
1,748 sq. ft. above gradeExterior dimensions: See plan PDF4 bedrooms • 3.5 bathrooms

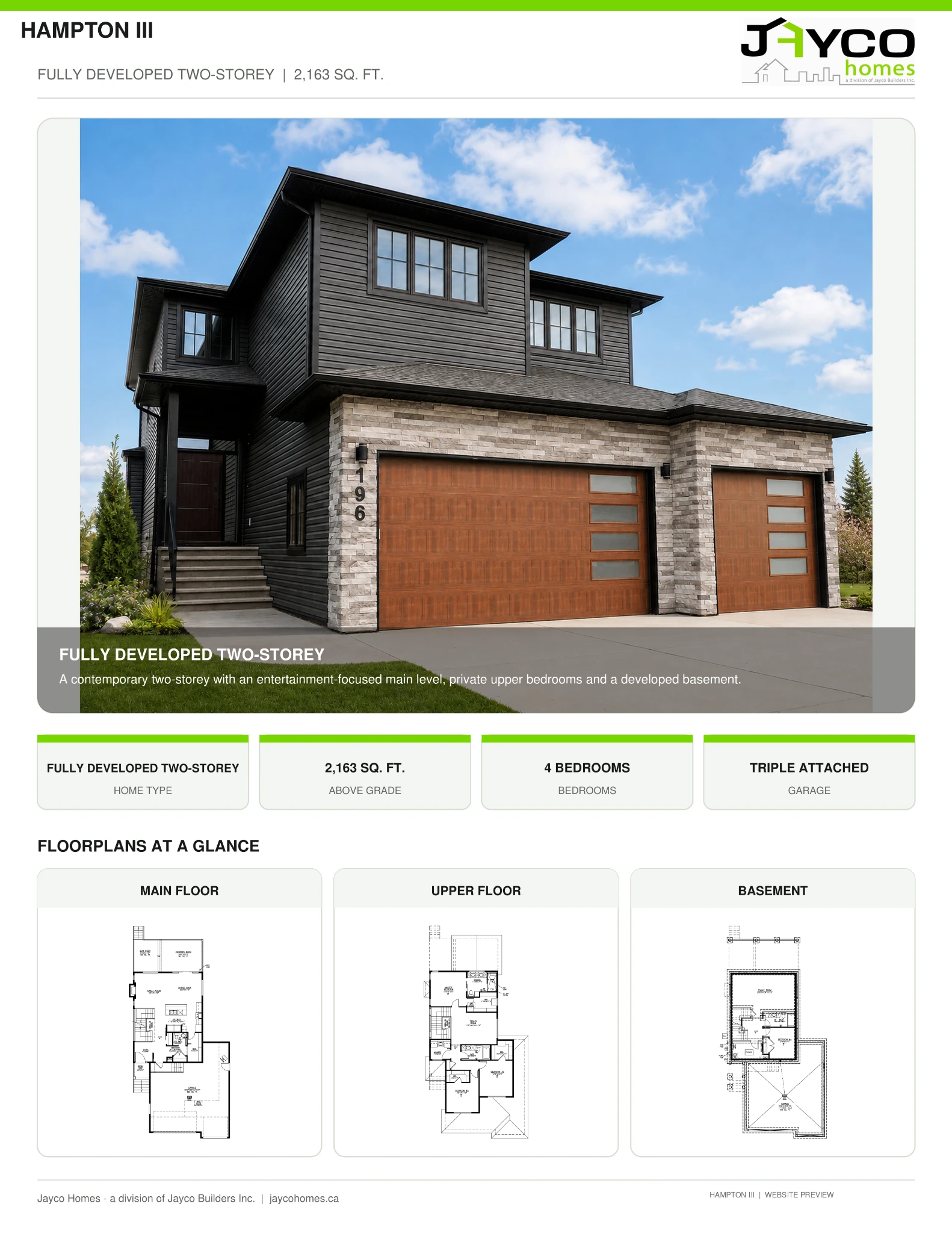

Hampton III
2,163 sq. ft. above gradeExterior dimensions: See plan PDF4 bedrooms • 3.5 bathrooms

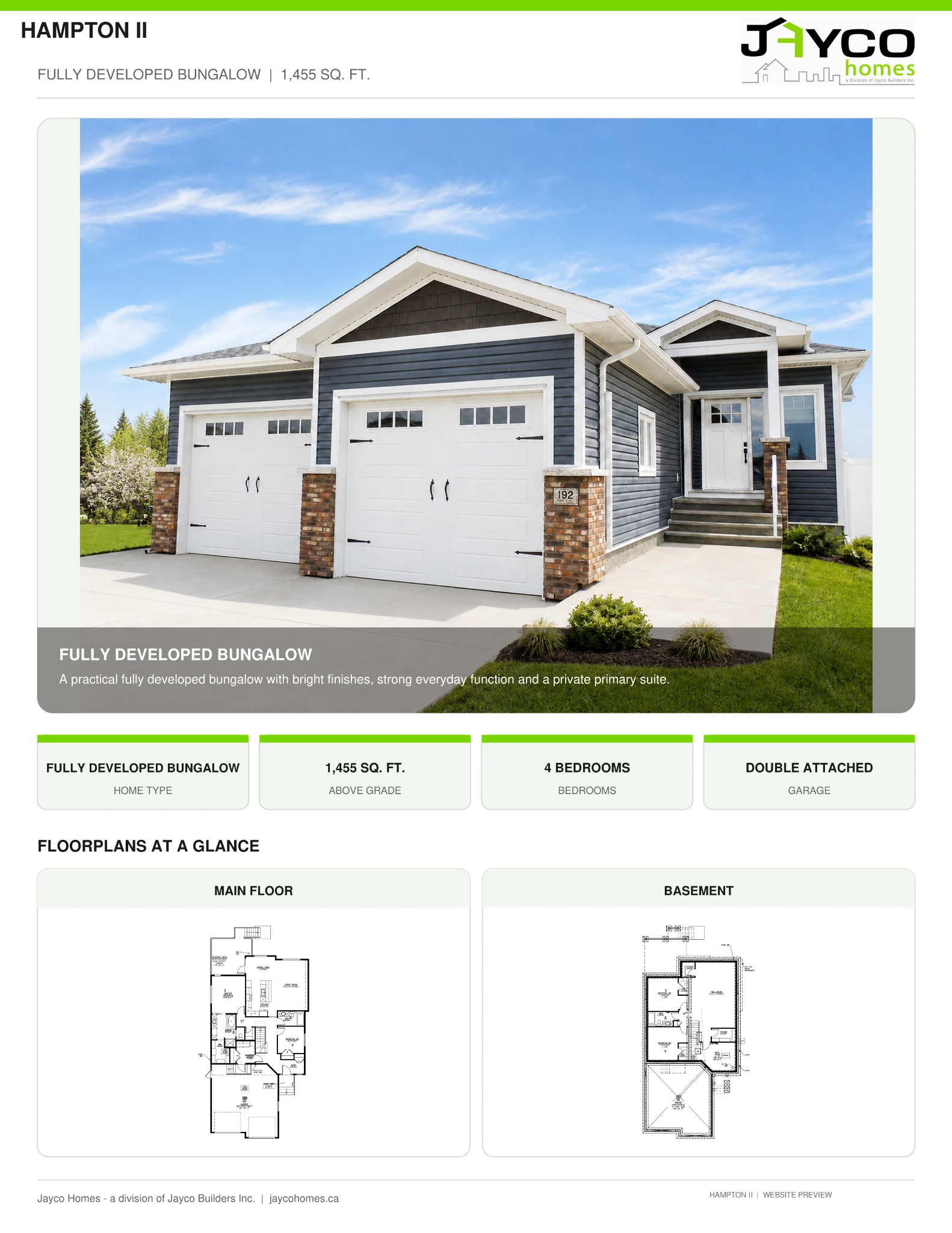

Hampton II
1,455 sq. ft. above gradeExterior dimensions: See plan PDF4 bedrooms • 3 bathrooms

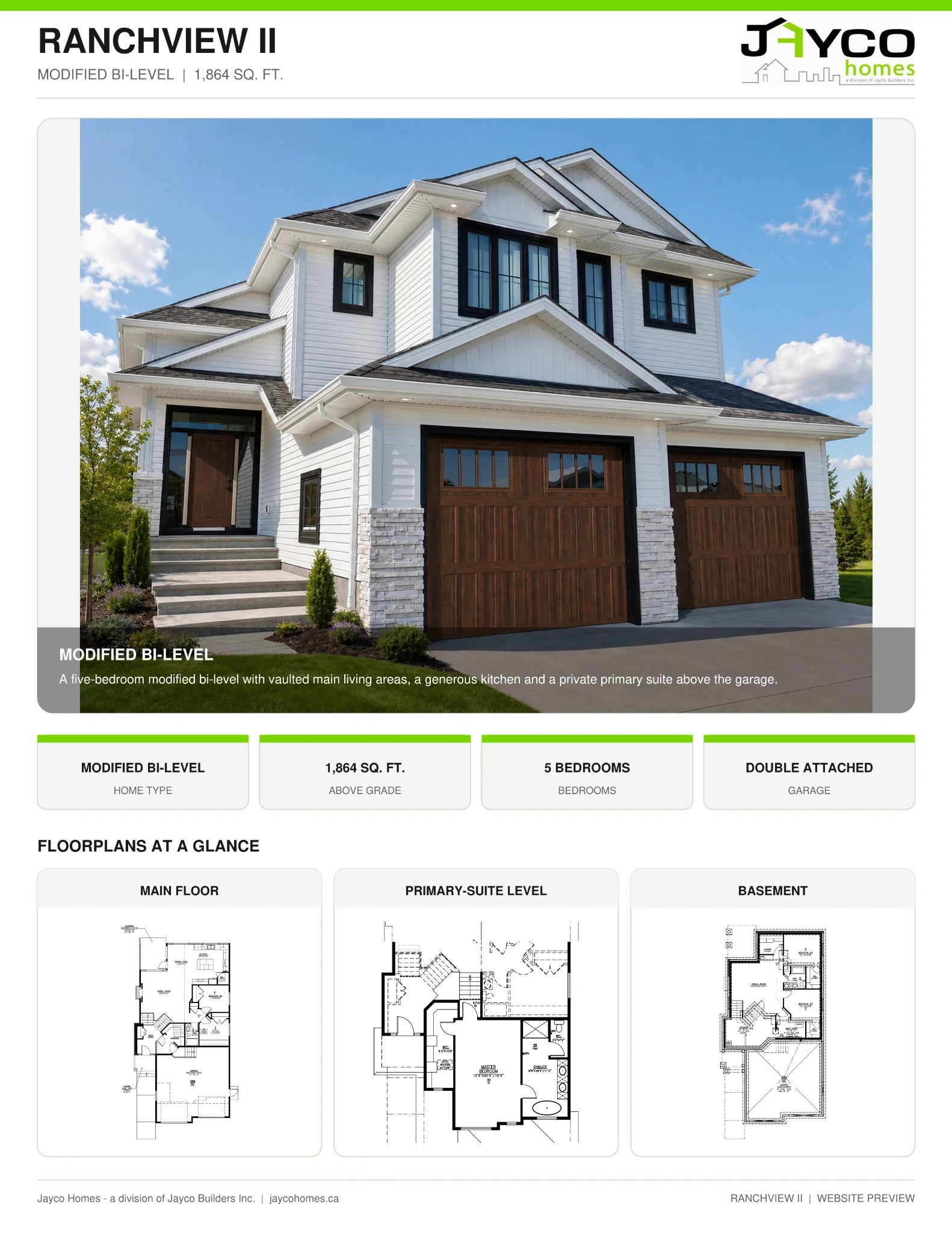

Ranchview II
1,864 sq. ft. above gradeExterior dimensions: See plan PDF5 bedrooms • 3 bathrooms

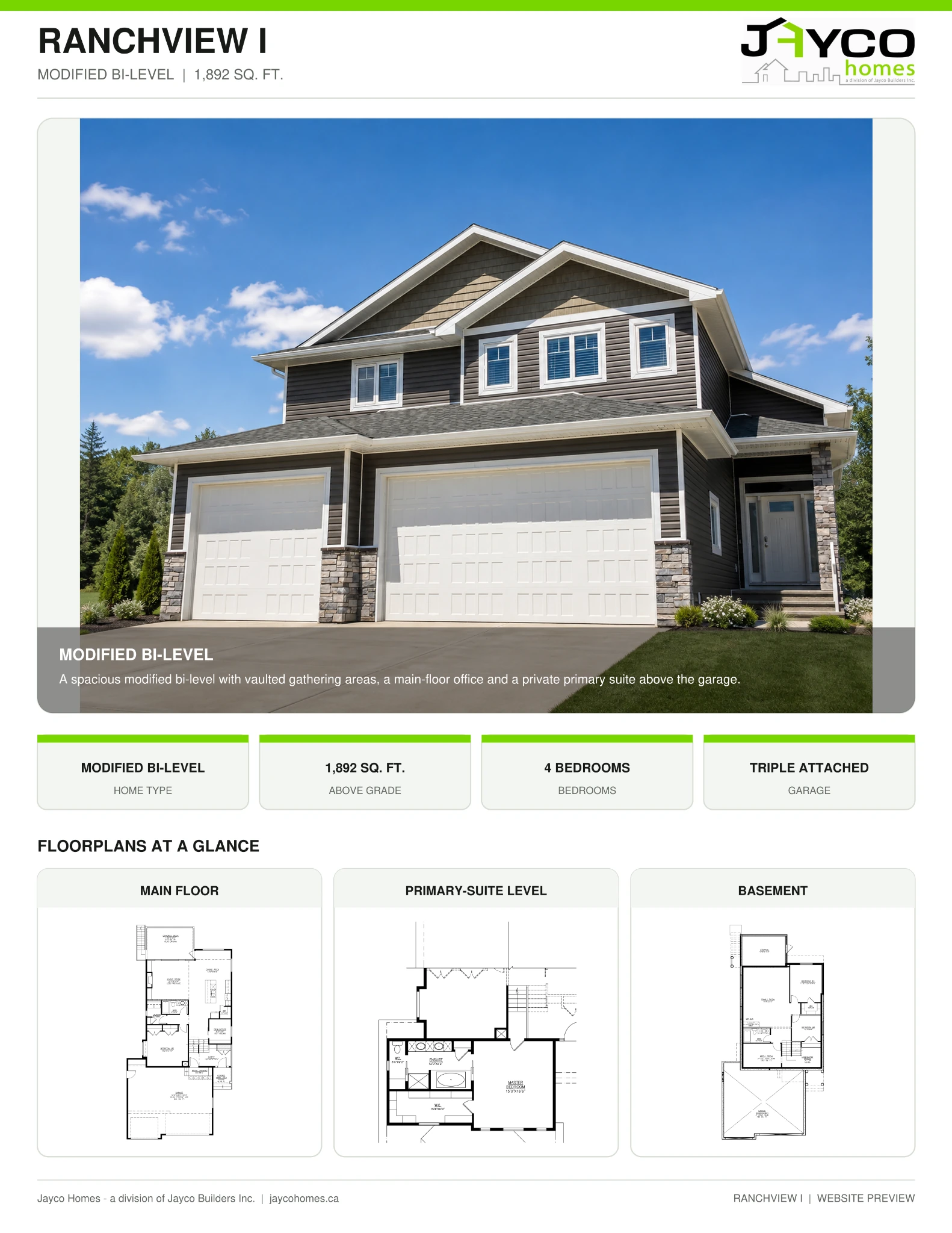

Ranchview I
1,892 sq. ft. above gradeExterior dimensions: See plan PDF4 bedrooms • 3 bathrooms

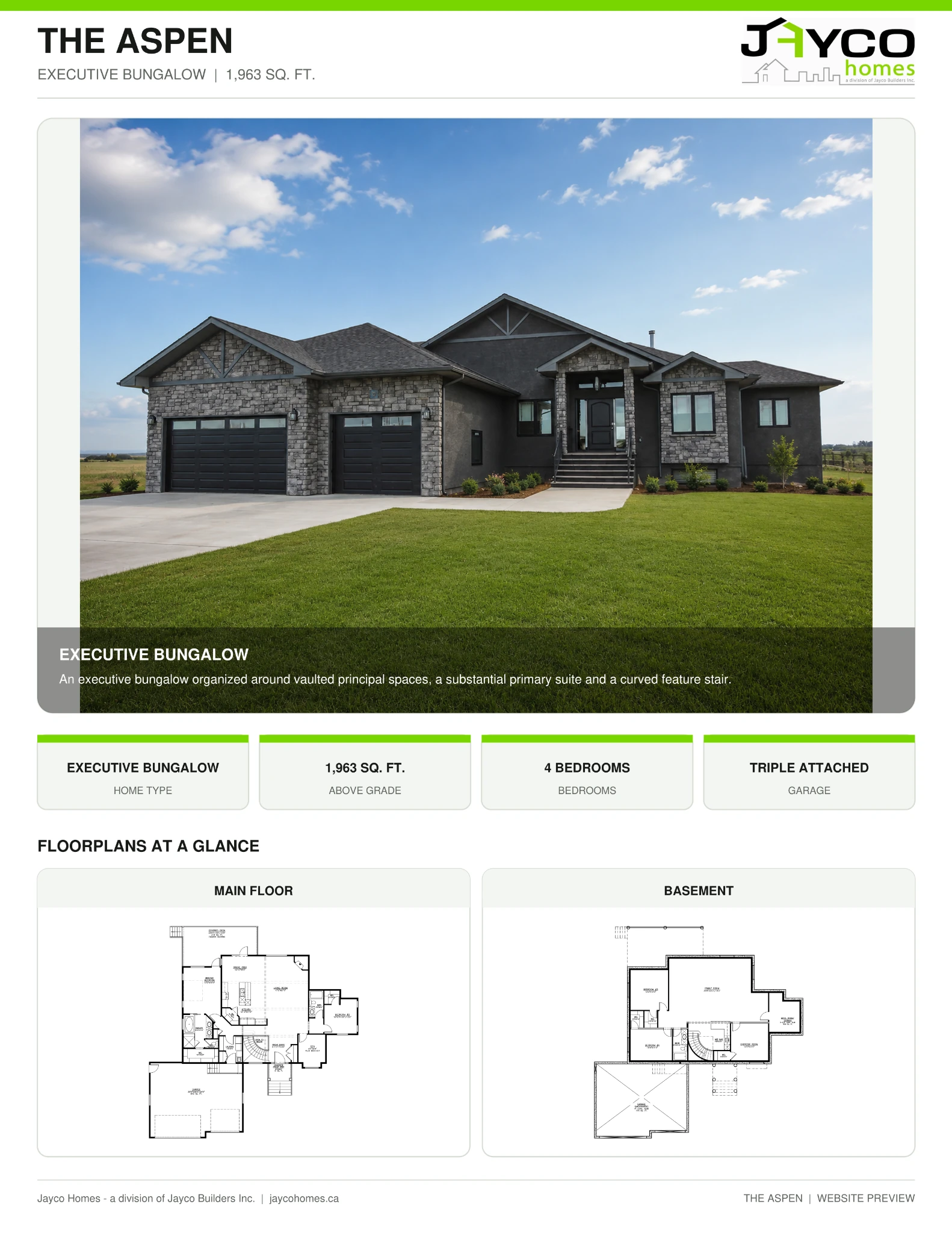

The Aspen
1,963 sq. ft. above gradeExterior dimensions: See plan PDF4 bedrooms • 3 bathrooms

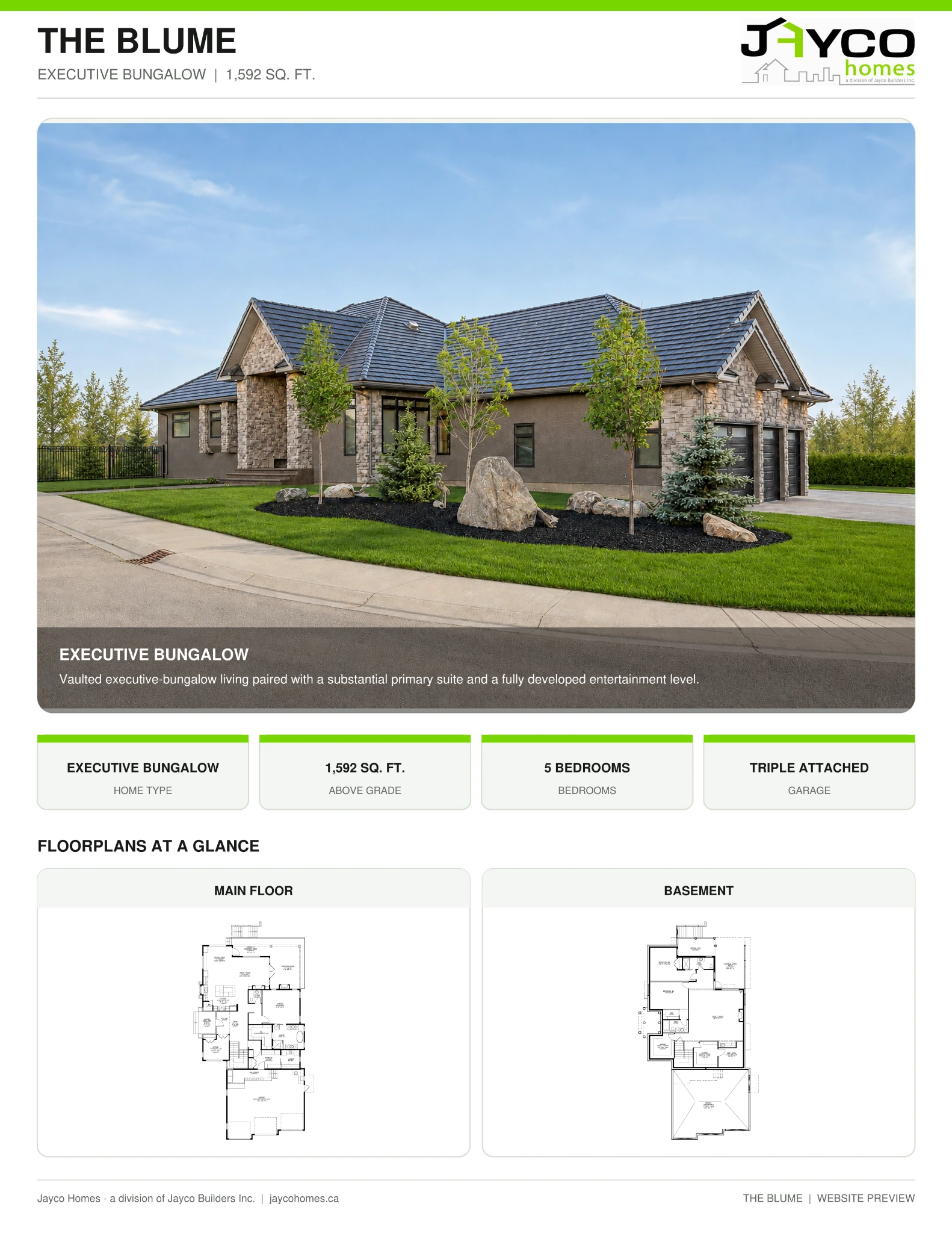

The Blume
1,592 sq. ft. above gradeExterior dimensions: See plan PDF5 bedrooms • 3.5 bathrooms

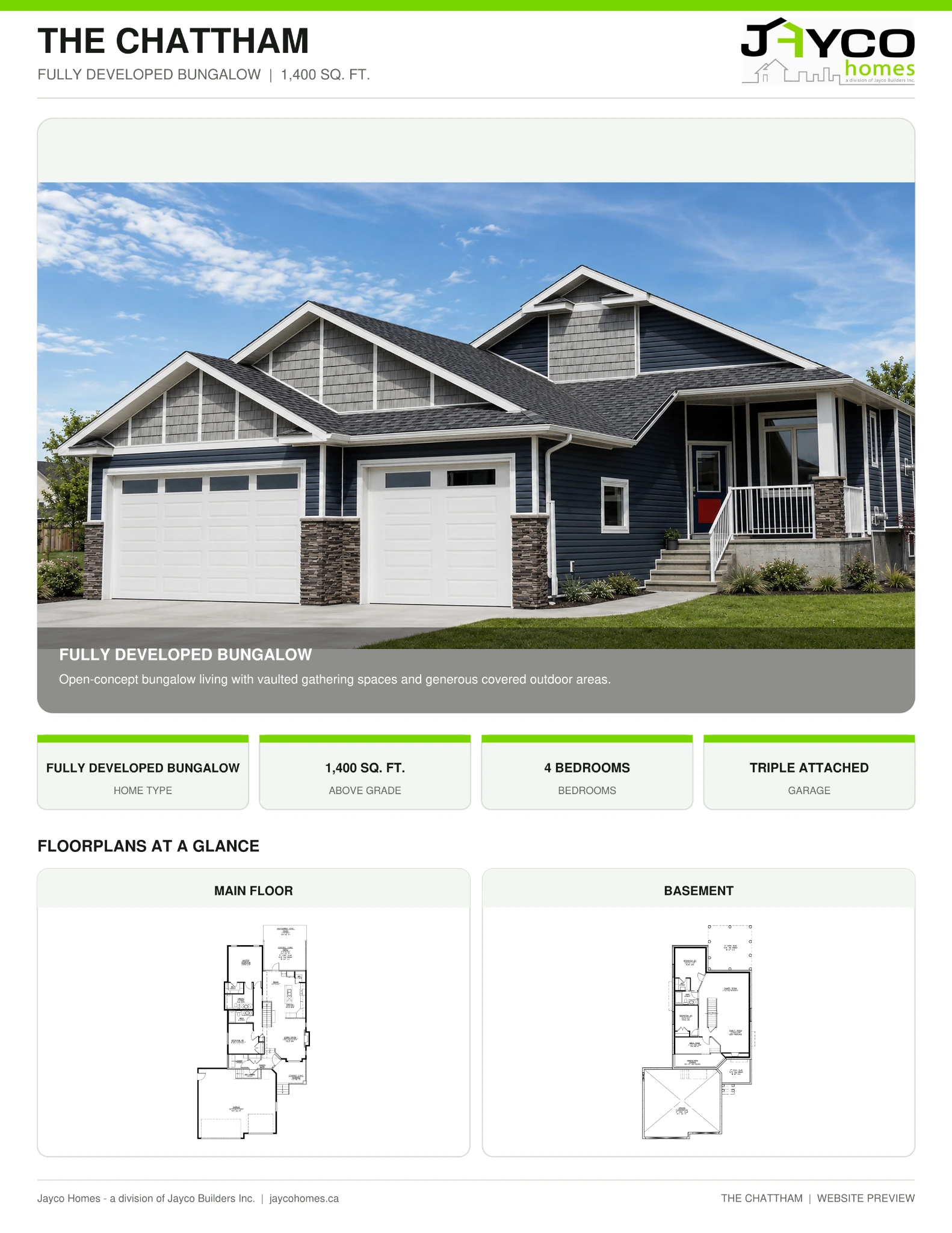

The Chattham
1,400 sq. ft. above gradeExterior dimensions: See plan PDF4 bedrooms • 3 bathrooms

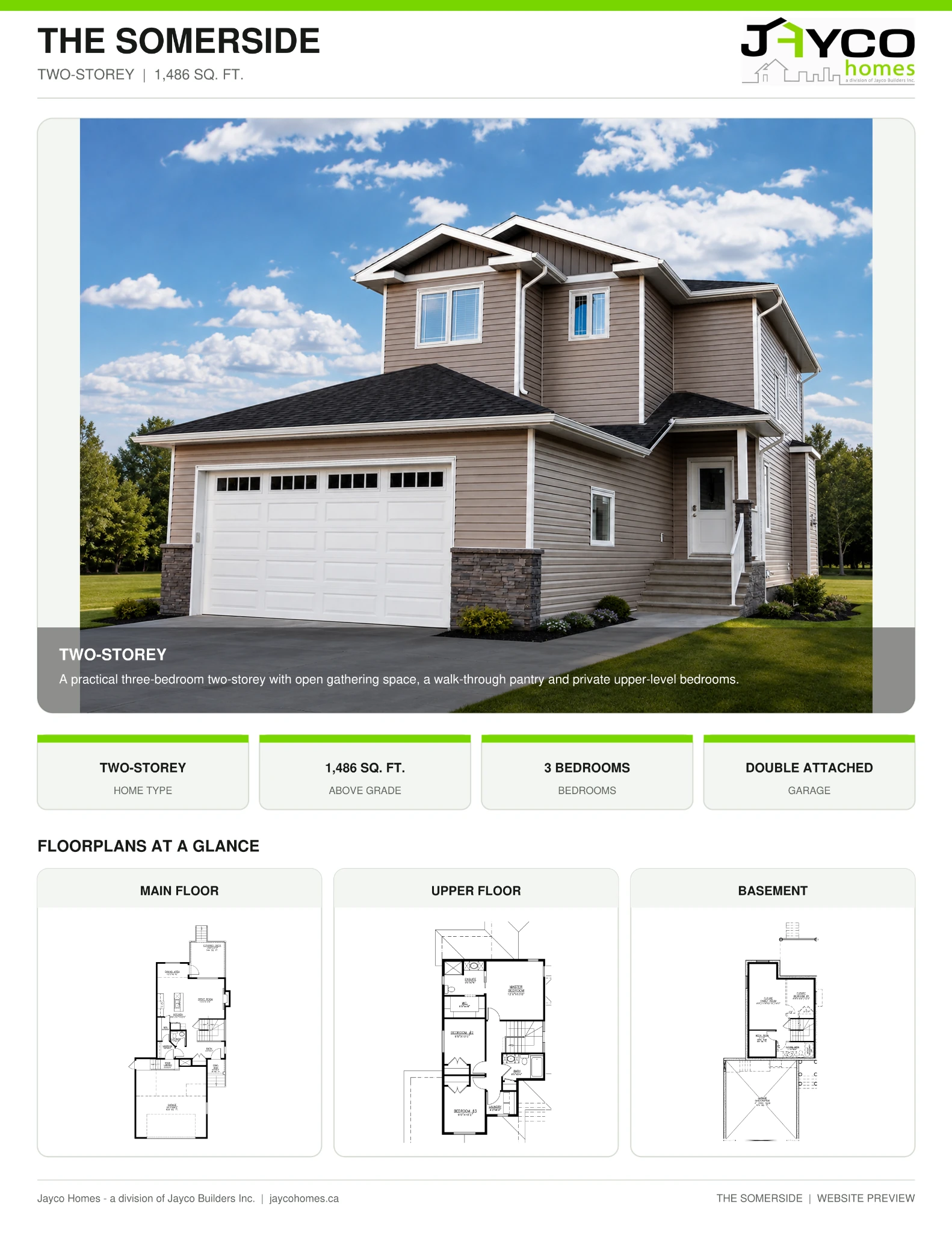

The Somerside
1,486 sq. ft. above gradeExterior dimensions: See plan PDF3 bedrooms • 2.5 bathrooms
No floorplans match these filters.
Reset the filters or contact Jayco Homes to discuss a custom design.
Plans are customizable starting points. Floorplans, exterior treatments, dimensions and specifications may be revised through the Jayco Homes design-build process. Final feasibility depends on the selected site, foundation, transportation requirements, local approvals and project scope.
Design Build
Use a proven plan—or create something entirely new.
Our in-house design team can modify an existing floorplan around your land, family, garage, foundation and construction method, or develop a new home from the ground up.
Built for Living. Designed for You.
A floorplan is the starting point—not the limitation.
Jayco Homes coordinates design and construction so decisions made on paper carry through to the finished home.
